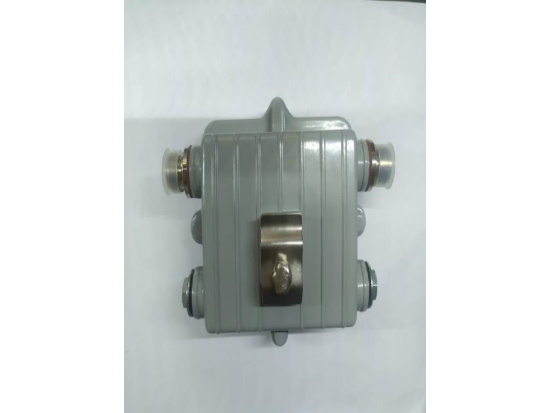

LETSCOM-2m-18dB-103
Low Noise Amplifier
| Frequency Range | 140 to 150MHz ( BW 10MHz @ 1dB) |
| Band Rejection | Typically 40dB @ 50MHz, 60dB @ 430MH z |
| Gain Adjustable | Typically +18dB Max, 10dB Min @ 145MH z |
| Noise Figure | 0.8dB (Typically <0.7dB @ 145MHz) |
| Through Loss | 0.05dB @ 145MHz (Bypass Mode) |
| RF Power Handling | 100W CW (Un Sequenced) 500W PEP (Sequenced) |
| Minimum RF Input | +20dBm ( 100mW ) To activate the RF sensing circuit |
| Operating Voltage | +11 to 15vdc (+12vdc @ 150mA Recommended) |
